Specification of the WhatsApp object

WhatsApp object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
sender Text sender. Needs to be registered first. For registration contact support here. Yes -
expiration Time limit in seconds after which alternative channel will be used. Values below 60 are ignored and replaced by the default No 180
template Template object. Cannot be used in tandem with following parameters (Message, File, Otp, Location) see Template object No null
message Message object. Cannot be used in tandem with following parameters (Template, File, Otp, Location) see Message object No null
file File object. Cannot be used in tandem with following parameters (Template, Message, Otp, Location) see File object No null
otp Otp object. Cannot be used in tandem with following parameters (Template, Message, File, Location) see Otp object No null
location Location object. Cannot be used in tandem with following parameters (Template, Message, File, Otp) see Location object No null

Template object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
template Template name Yes -
language Language in Iso format Yes -
header Template header object, see Header object No null
body Template body object, see Body object No null
buttons Array of template button objects, see Buttons object No null

Template header object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
type Type of header (image, video, text, location) Yes -
url Path to video, or image (used with image, video type) Yes, not in tandem with folliwing (text, location) -
caption Caption of image, or video (used with image, video type) Yes, not in tandem with folliwing (text, location) -
text Text (used with text type) Yes, not in tandem with folliwing (url, caption, location) -
location Location object (used with location type), see Location object Yes, not in tandem with folliwing (url, text, caption) -

Template body object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
type Type of body (text, price, currency) No text
text Text (used with text type) Yes, not in tandem with folliwing (amount, currency) -
amount Amount of set currency Yes, not in tandem with folliwing (text) -
currency Currency Yes, not in tandem with folliwing (text) -

Template buttons object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
type Type of button (payload, url) Yes -
index Index of defined button Yes -
payload Meta data sent after clickling the button Yes, only with payload type -
text Url to which recipient will be redirected to Yes, only with url type -

Example of template object request:

POST /api/2.0/advanced/transactional HTTP/1.1 Host: portal.bulkgate.com Content-Type: application/json { "application_id": 451, "application_token": "NKN02TWE6NfBkfl-your-secret-token-Wf05GaqLIWLW4aBj", "number": [ "420777777777" ], "channel": { "whatsapp": { "sender": "420777777777", "template": { "template": "order_shipped", "language": "en", "header": { "type": "image", "url": "https://example.com/order-header.jpg", "caption": "Order 4517" }, "body": [ { "type": "text", "text": "John" }, { "type": "currency", "amount": 20.5, "currency": "EUR" } ], "buttons": [ { "type": "url", "index": 1, "text": "4517" } ] } } } }

Example Template object

File Object

Message object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
text Text of a message Yes -
preview_url Preview sent url as a thumbnail No true

Example of message object:

POST /api/2.0/advanced/transactional HTTP/1.1 Host: portal.bulkgate.com Content-Type: application/json { "application_id": 451, "application_token": "NKN02TWE6NfBkfl-your-secret-token-Wf05GaqLIWLW4aBj", "number": [ "420777777777" ], "channel": { "whatsapp": { "sender": "420777777777", "message": { "text": "Your order 4517 has been shipped. Track it at https://example.com/track/4517", "preview_url": true } } } }

File object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
type Type of file (image, video, audio, document, sticker) No image
url Path to the file Yes -
caption Caption of sent file No ""

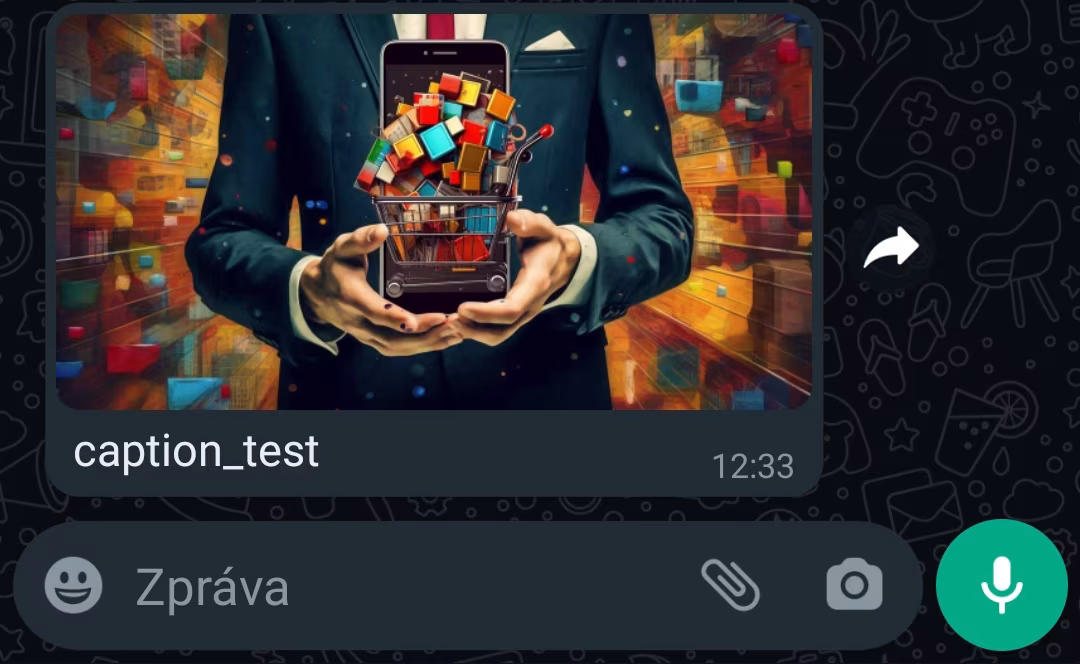

Example of File object:

POST /api/2.0/advanced/transactional HTTP/1.1 Host: portal.bulkgate.com Content-Type: application/json { "application_id": 451, "application_token": "NKN02TWE6NfBkfl-your-secret-token-Wf05GaqLIWLW4aBj", "number": [ "420777777777" ], "channel": { "whatsapp": { "sender": "420777777777", "file": { "type": "document", "url": "https://example.com/invoice-4517.pdf", "caption": "Invoice for order 4517" } } } }

Example File object

File Object

Otp object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
template Template of text message being send with the code Yes -
code One time code Yes -
language Language used to send the message containing code (if null is used language will be detected from phone number) Yes -

Example of Otp object:

POST /api/2.0/advanced/transactional HTTP/1.1 Host: portal.bulkgate.com Content-Type: application/json { "application_id": 451, "application_token": "NKN02TWE6NfBkfl-your-secret-token-Wf05GaqLIWLW4aBj", "number": [ "420777777777" ], "channel": { "whatsapp": { "sender": "420777777777", "otp": { "template": "verification_code", "language": "en", "code": "0451" } } } }

Location object

PARAMETER NAME VALUE MANDATORY DEFAULT VALUE
latitude Latitude in floating point number No -
longitude Longitude in floating point number No -
name Name of sent location No -
address Address of sent location No -

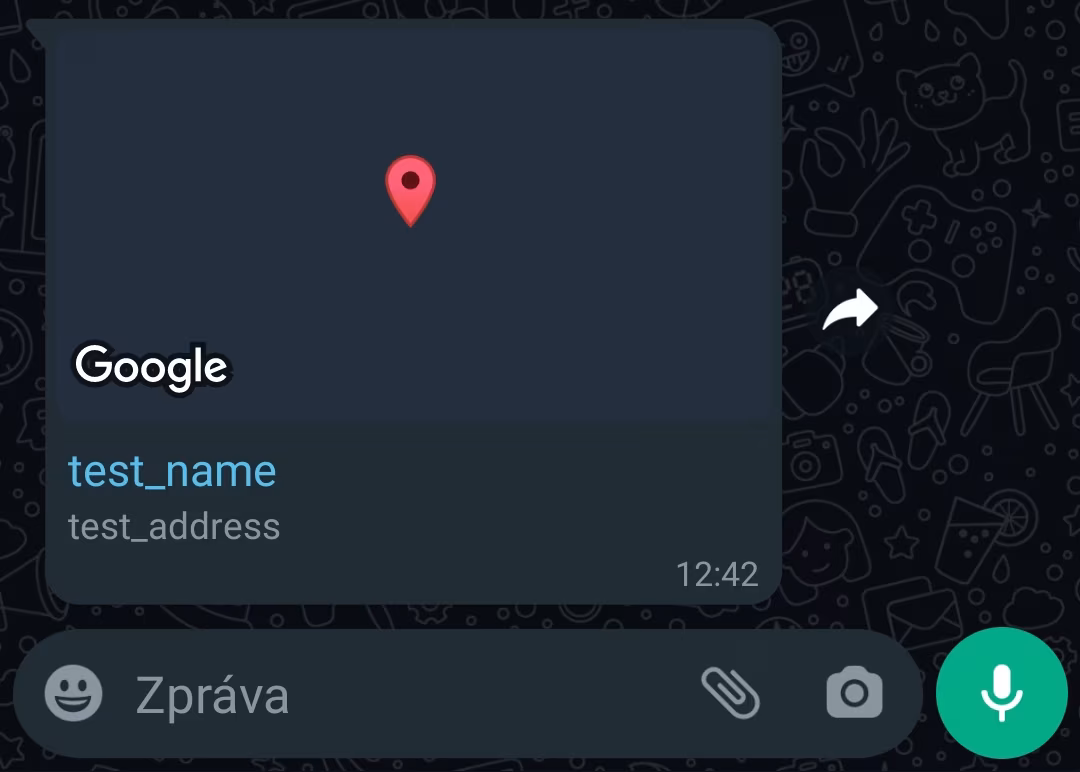

Example of Location object request:

POST /api/2.0/advanced/transactional HTTP/1.1 Host: portal.bulkgate.com Content-Type: application/json { "application_id": 451, "application_token": "NKN02TWE6NfBkfl-your-secret-token-Wf05GaqLIWLW4aBj", "number": [ "420777777777" ], "channel": { "whatsapp": { "sender": "420777777777", "location": { "latitude": 50.086584, "longitude": 14.410763, "name": "Pick-up point", "address": "Karluv most, Praha" } } } }

Example Location object

File Object

Example of full request

An approved template with a header, body parameters and a URL button, SMS as the fallback. The WhatsApp leg ignores the top-level text, which is there for the SMS leg.

POST /api/2.0/advanced/transactional HTTP/1.1 Host: portal.bulkgate.com Content-Type: application/json { "application_id": 451, "application_token": "NKN02TWE6NfBkfl-your-secret-token-Wf05GaqLIWLW4aBj", "number": ["420777777777"], "text": "Your order 4517 has been shipped.", "channel": { "whatsapp": { "sender": "420777777777", "expiration": 300, "template": { "template": "order_shipped", "language": "en", "header": { "type": "image", "url": "https://example.com/order-header.jpg", "caption": "Order 4517" }, "body": [ {"type": "text", "text": "John"}, {"type": "currency", "amount": 20.5, "currency": "EUR"} ], "buttons": [ {"type": "url", "index": 1, "text": "4517"} ] } }, "sms": { "sender_id": "gText", "sender_id_value": "BulkGate" } } }

The same message as free text. It can only be used inside the 24 hour service window; outside of it a template is required.

POST /api/2.0/advanced/transactional HTTP/1.1 Host: portal.bulkgate.com Content-Type: application/json { "application_id": 451, "application_token": "NKN02TWE6NfBkfl-your-secret-token-Wf05GaqLIWLW4aBj", "number": ["420777777777"], "text": "Your order 4517 has been shipped.", "channel": { "whatsapp": { "sender": "420777777777", "message": { "text": "Your order 4517 has been shipped. Track it at https://example.com/track/4517", "preview_url": true } }, "sms": { "sender_id": "gText", "sender_id_value": "BulkGate" } } }

The response is the same for every channel - see Advanced transactional.
